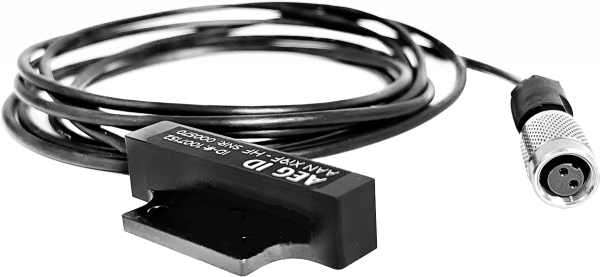

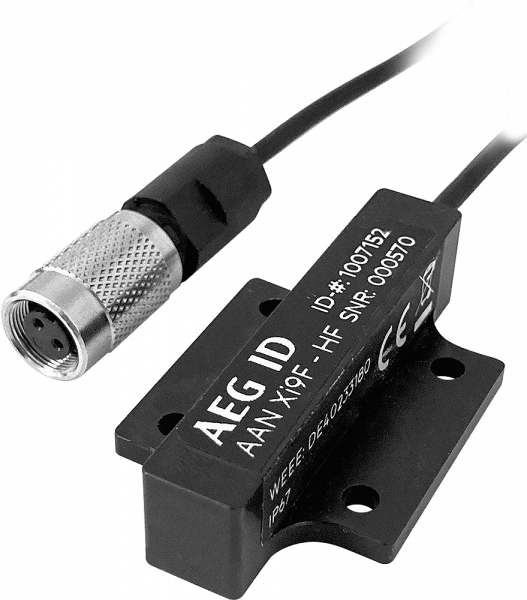

Antenna AAN Xi9F HF
The antenna AAN Xi9F HF is a passive unit designed for the ARE i9X HF and ARE i2.0x HF readers. It is well suited as well for both, static as well as dynamic applications.
- Electrical characteristics
- ARE i9X HF & ARE i2.0x HF
- 13.56 MHz
- Environment
- -20°C up to +70°C (+140°C opt. only antenna)
- -20°C up to +70°C (+140°C opt. only antenna)
- IP 65
- IEC 68-2-6 / 29
- Dimensions
- Ca. 50 g
- 46 mm
- 30 mm
- 10 mm
- Plastic
- Additional information
- 4 x 3,5mm | 20mm distance short side, 21mm distance long side | 0.5m ... 10m flexible cable (diameter 3.8mm)
Subject to change without notice
