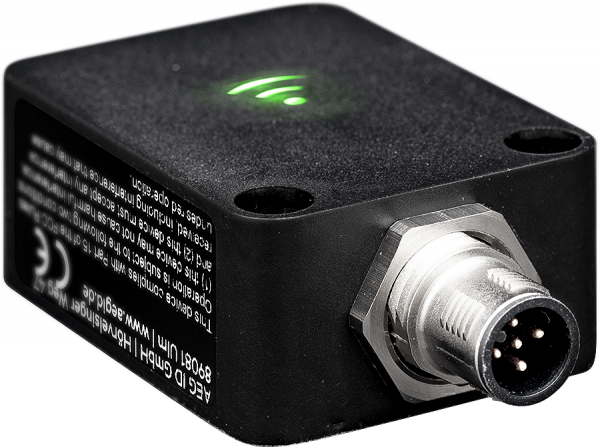

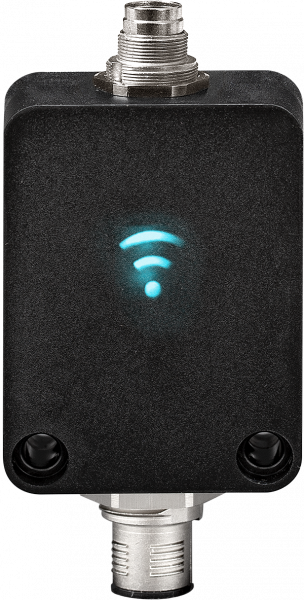

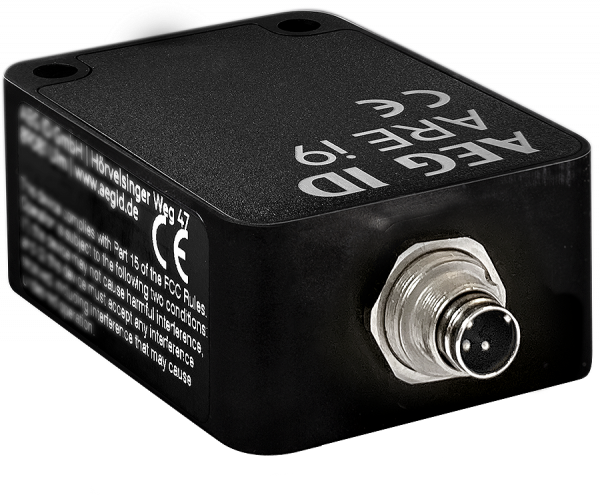

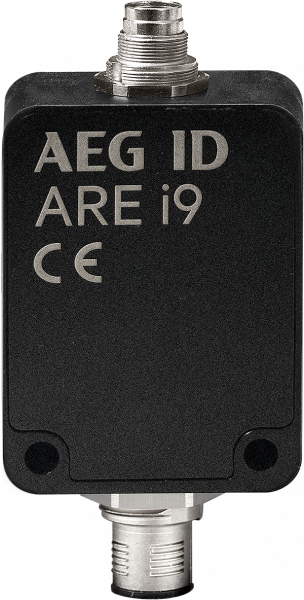

Compact reader ARE i9x HF
The ARE i9x HF reader combines all common LF algorithms in one device. The extremely compact design and the possibility of mounting directly on metal makes it an ideal reader for all industrial applications. Compared to the ARE i9, the ARE i9x offers the option to attach an external antenna.
- Electrical characteristics
- ISO 15693
- 13,56 MHz
- RS232 (M12 - 5-Pin A coded male)
- Easy serial ASCII based control protocol
- 7,5V DC
- AAN Xi9F
- Environment
- -20°C up to +70°C
- -20°C up to +70°C
- IP 67
- IEC 68-2-6 / 29
- Dimensions
- Ca. 100 g
- 85.0 mm
- 40.8 mm
- 24 mm
- PC
- Additional information
- Mounting Option: 2 mounting holes for M4 cylinderhead screw, length: min. 30mm
Subject to change without notice
