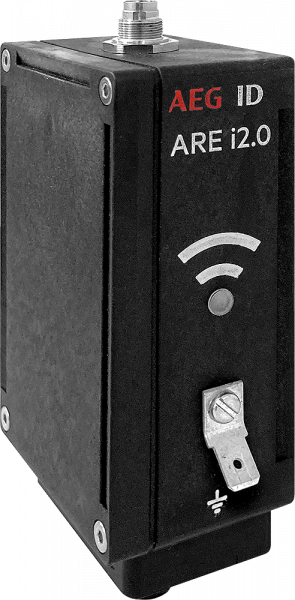

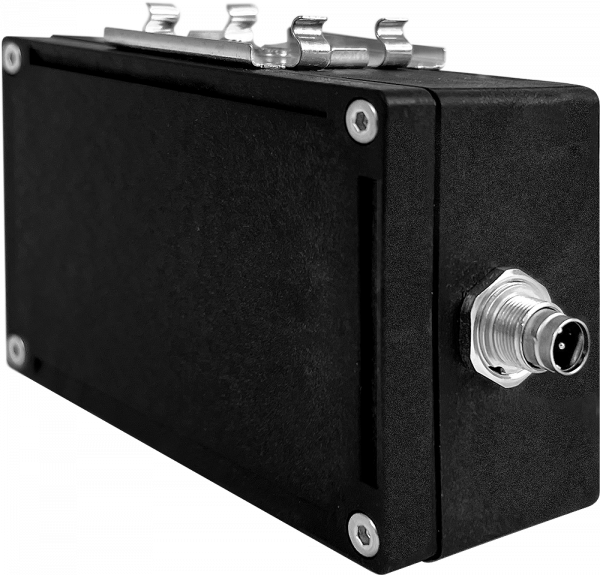

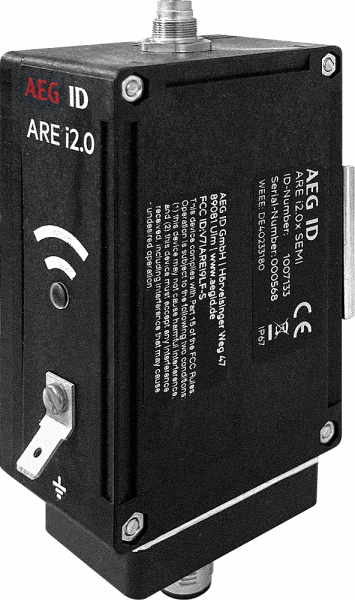

Compact reader ARE i2.0x LF
The ARE i2.0x is a reader unit, which can be integrated in an industrial automation process. Most HDX, PSK and ASK transponder types can be read with this reader (for example 64 bit read only or 1 kbit or 2 kbit read/write transponder). Because of its small outline dimensions, the reader is ideally suited for integration in completely automated production lines.
- Electrical characteristics
- ASK, PSK, FSK, HDX
- 125 kHz, 134.2 kHz
- RS 232
- Easy serial ASCII based control protocol
- 7V… 24V DC
- AAN Xi1, AAN Xi5F, AAN Xi9F LF, AAN
- Environment
- -20°C up to +70°C
- -20°C up to +70°C
- IP 67
- IEC 68-2-6 / 29
- Dimensions
- Ca. 170 g
- 90 mm
- 58 mm
- 38 mm
- PA6, ABS
- Additional information

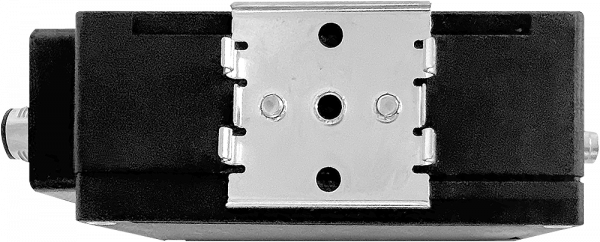

- mounting on top hat rail included
- Usage
- ARE i2.0x SEMI works with LF HDX transponders that comply to SEMI standard 144-0312.
Subject to change without notice
