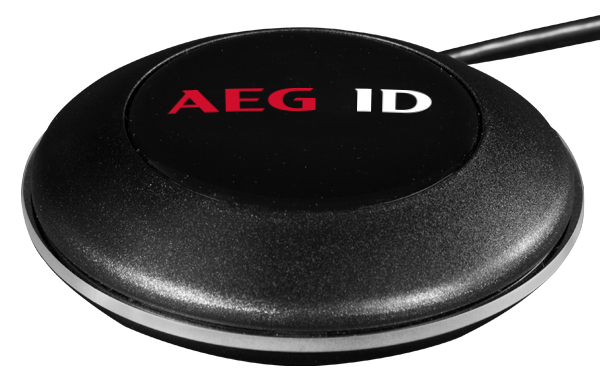

Desktopreader ARE DT1 HF
The ARE DT1 is a stationary desktop reader with a integrated ferrit or an integrated air coil antenna. The RFID-reader possesses an USB HID interface. The 3D logo at the top of the reader is individualized.
- Electrical characteristics
- ISO 14443 A, ISO 15693
- 13.56 MHz
- USB, HID
- 5V via USB
- Environment
- -25°C up to 60°C
- -25°C up to 60°C
- IP 51
- IEC 68-2-6 / 29
- Dimensions
- Ca. 50 g
- 110 mm
- 30 mm
- ABS
- Additional information
- Option: Surface mounting version | Features: LED ring, buzzer | Input Current (typ.): I=45mA (idle), I=130mA (typ.), I=160mA (max.)
Subject to change without notice
