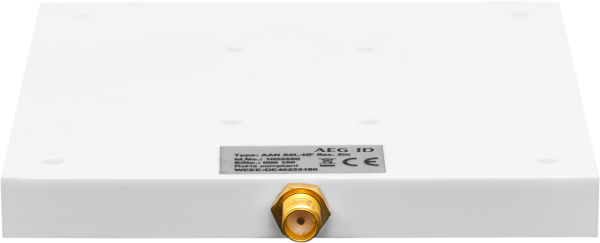

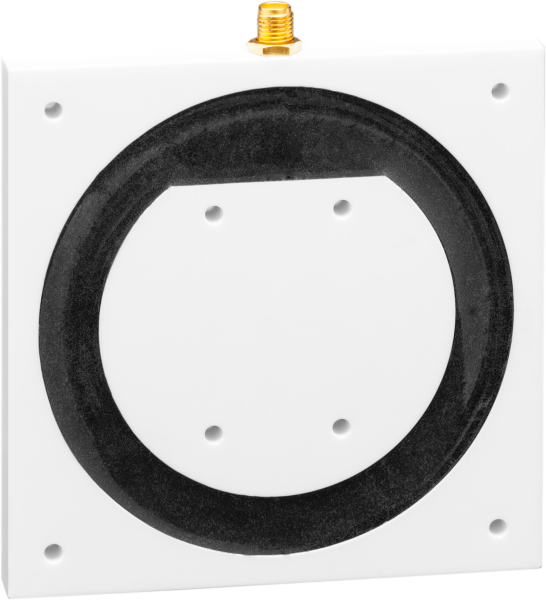

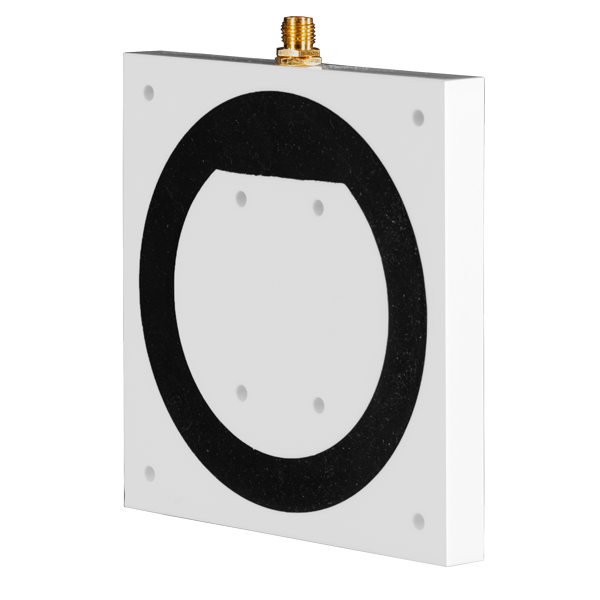

Antenna AAN X9 HF

The antenna AAN X9L HF is a passive unit designed for the ARE i2 HF reader. It is well suited as well for both, static as well as dynamic applications.

Do you have questions? Please contact us:
Phone: +49 (0)731 14 00 88 0
E-Mail: info@aegid.de

Electrical characteristics
reading system ARE i2 HF
operational frequency 13.56 MHz
Environment
storage temperature -20°C up to +70°C
operating temperature -20°C up to +70°C
housing protection IP 65
schock & vibration IEC 68-2-6 / 29
Dimensions
Weight Ca. 210 g
Length 90 mm
Width 90 mm
Height 10 mm
Material Plastic
Additional information
cable length between antenna electronics and reader: 0,5….10m flexible cable

Subject to change without notice
